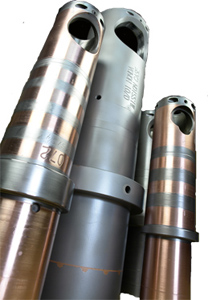

MX-Style Thermal Control Composite Construction Shot Sleeve
The MX-Style sleeves generally have two cooling circuits. One cooling cell is in the pour hole region to help reduce excessive heat build up which causes erosion and distortion. The other is at the die end of the shot sleeve where the metal exits and the biscuit is formed. Each MX-Style Sleeve requires a minimum wall thickness. Wall thickness is dependent upon individual design but generally a minimum of 1-1/2 per side is recommended (i.e. 4 I.D. requires a 7 O.D.) TC-Style Thermal Control Composite Construction Shot SleeveThe TC-Style sleeve incorporates two layers. The first layer closest to the I.D. is made from hardened high alloy H-13 steel. The second layer is high conductivity copper which is brazed to the outside of the H-13. This design is effective when the sleeve wall thickness is 1-1/4 or below. This design is also the Insert Technology In todays market place with the cost of steel rising die casters can no longer afford to throw away expensive shot sleeves. With a considerable amount of cost tied to the outer shells Pegasus has perfected a method to replace just the inner barrel. This way anything that comes in contact with the molten aluminum or magnesium is replaced. This includes the face of the sleeve at the parting line often the hottest area of the sleeve. Generally die casters can save 40-50% over the cost of a new sleeve. Inserting a new barrel into a sleeve generally can be done a number of times before the sleeve needs to be permanently retired. Insert Technology is a fairly complicated process and must be sent to Pegasus Industries to perform the procedure. If a barrel can be stocked in advance lead time can be as little as 3-4 weeks. Conventional H-13 Shot SleevePegasus has been producing standard shot sleeves for the industry for 25 years. Whether you our customers require split collars, threaded collars, keyways, or runners cut in the die end of the shot sleeve. Pegasus takes pride in superior quality and lead times. Contact us with your print today to get your quote process started. |
The Pegasus Thermal Control Composite Construction Shot Sleeve was developed to solve one simple problem distribute heat quickly and evenly. The Pegasus Thermal Control Shot Sleeve is engineered to move the damaging heat away from the trouble areas (under the pour hole and die end of the shot sleeve) and distribute it over the rest of the shot sleeve / cold chamber. This is made possible by the high conductivity copper layer used as the conduit for heat transfer trapped close to the ID of the shot sleeve. Due to steels limited conductivity heat can become localized causing bore distortion, solder or lamination, and washout or erosion. All of these conditions will eventually contribute to poor sleeve and tip/piston life. Pegasus Industries has patented technology that addresses these common problems and a whole lot more.
The MX-Style Shot Sleeve / Cold Chamber is our most advanced cold chamber design. This shot sleeve is comprised of three layers to form a composite construction. The inner most layer is high alloy H-13 hardened and nitrided. This layer is generally very thin about ½. The second layer is high conductivity copper alloy which is trapped between the other two steel layers. The third layer comprises the outer shells which have a compression fit to the rest of the shot sleeve. This is what makes up the profile of the sleeve. The outer shells is where we circulate the cooling medium usually water.
Most often the MX-Style design allows us to incorporate our Insert Technology. Insert Technology described below is the ability to fully replace the inner barrel while reusing the outer more expensive shells.
preferred choice when we incorporate heating elements for the body of the sleeve. This design can also incorporate water cooling either at the pour hole or die end of the shot sleeve.
|
